High security cattle fence / grassland fence / deer / horse / sheep fence
Application:
Mainly used in cattle, goat, deer and pig. It is used for grassland, pastures, protection of ecological projects,
protecting grassland, forestry, farming sectors, highway mitigation fencing and environment.
Detailed Description:
1.Material: low carbon steel wire,middle carbon steel wire
2.Surface treatment:
Class A: Hot dipped galvanized hinge joint field fece(zinc coated:220-260g/m2)
Class B: Hot dipped galvanized hinge joint field fence(zinc coated:60-70g/m2)
Class c: Electro galvanized hinge joint field fence(zinc coated:15-20g/m2)
3.Edge wire: 2.0mm-3.4mm

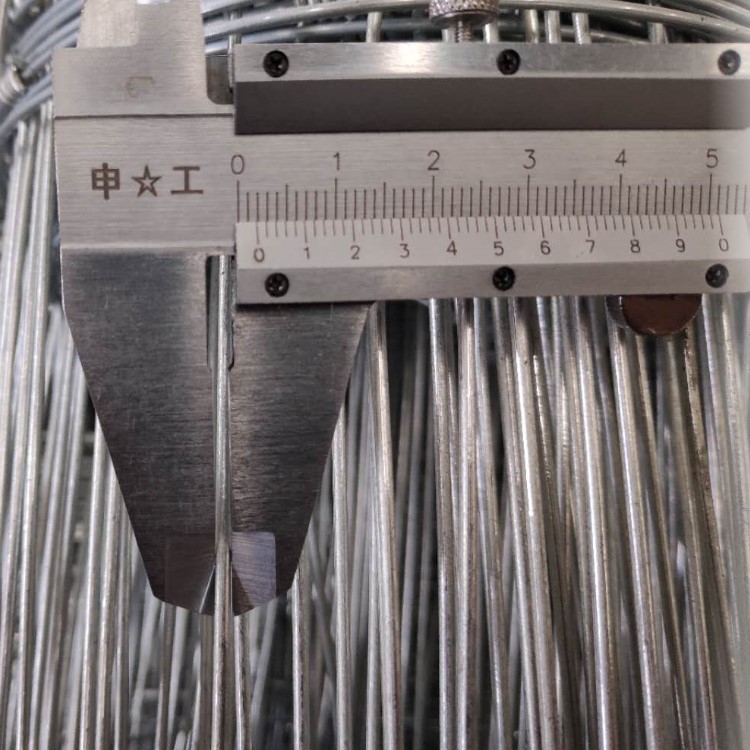

4.Mesh wire dia : 1.9mm-2.5mm
5.Height: 0.8m,1.0m,1.2m,1.5m, 1.7m, 2.0m. We can also make as the request of the customer .
6.Length: 50m-200m ;(According to the request of the customer)
7.Opening in cm:
(warp)15-14-13-11-10-8-6cm; ( 6" 5.5" 5" 4.5" 4" 3" 2.5")
(weft)15-18-20-40-50-60-65cm (6" 7" 8" 15" 20" 24" 25")
8.Characteristics: corrosion resistance, weather resistance properties, high tensile strength, durable against hit and serve for a very long time.
9.Application:it is used for border in fields and grassland for breeding deer, cattle and other animals.
10.Packing: packed by plastic film and wooden pallet
Specification:
| Num | Type | Specification/Edge wire2.5mm/Inner wire 2.0mm | Gross weight(KG) |
| 1 | 7/150/813/50 | 102+114+127+140+152+178 | 19.3 |
| 2 | 8/150/813/50 | 89(75)+89+102+114+127+140+152 | 20.8 |
| 3 | 8/150/902/50 | 89+102+114+127+140+152+178 | 21.6 |
| 4 | 8/150/1016/50 | 102+114+127+140+152+178+203 | 22.6 |
| 5 | 8/150/1143/50 | 114+127+140+152+178+203+229 | 23.6 |
| 6 | 9/150/991/50 | 89(75)+89+102+114+127+140+152+178 | 23.9 |
| 7 | 10/150/1245/50 | 102+114+127+140+152+178+203+229 | 26 |
| 8 | 10/150/1194/50 | 89(75)+89+102+114+127+140+152+178+203 | 27.3 |
| 9 | 10/150/1334/50 | 89+102+114+127+140+152+178+203+229 | 28.4 |
| 10 | 11/150/1442/50 | 89(75)+89+102+114+127+140+152+178+203+229 | 28.4 |
Feature:
1) Coated with heavy zinc or PVC coating for long-lasting use
2) Hinge joint knot, stronger and firmer structure.
3) Wire tension curve to keep fence flexibility in changing weather.
4) Extra strong top and bottom wire lines.
5) Higher tensile wire, more stronger.
6) Easy maintenance, short installation period, save material and labor cost.
7) Less weight, small volume, easy for transport.

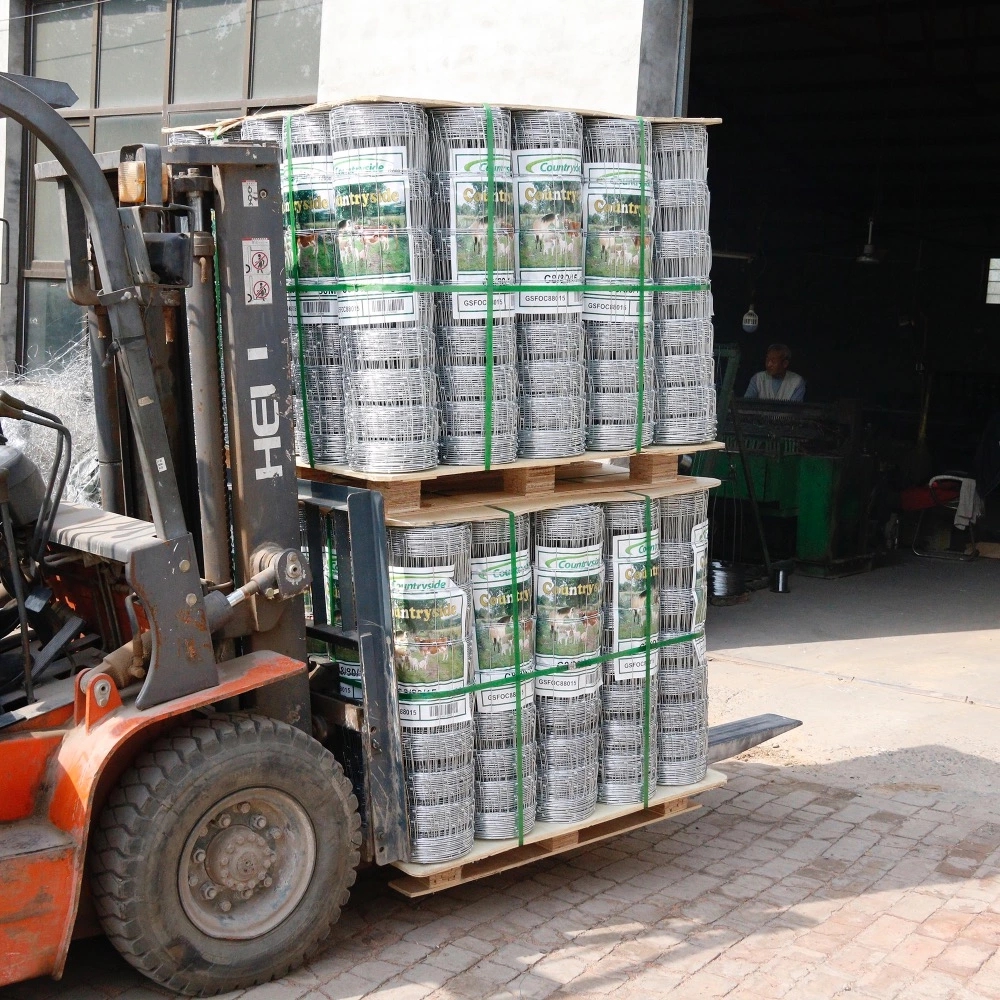

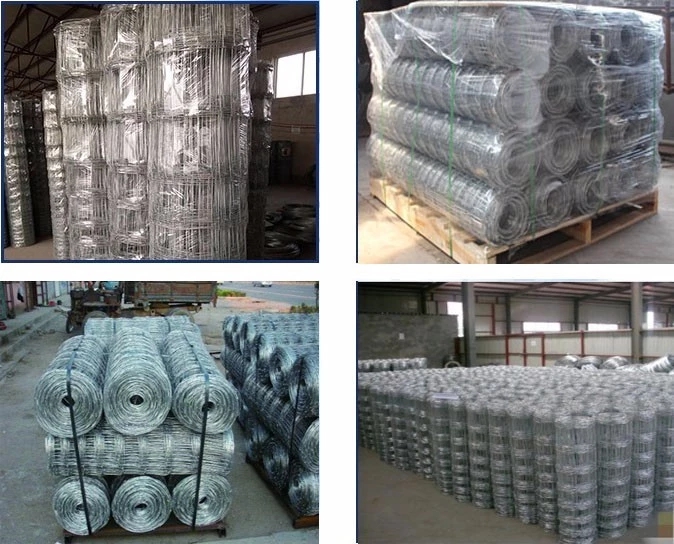

Packing & Shipping:
1)In Nude,which is the most popular packing ways as it could load bigger quantities,then lower unit price.
2) Plastic Film, uniform and good integration.
3)Wooden Pallet,save time and efforts,more convenient to load and discharge.
Our Company:
KOCHFENCE is industry leader in fencing solutions, perimeter protection, wire field fence, high tensile field fence,
hinged knot field fence.
KOCHFENCE provides Engineered Total Fencing Solutions to protect industrial buildings, private gardens, public infrastructures, rails, expressways, agricultural sites and livestock. Over the years, the company has evolved from a
fence panel manufacturer to an Engineered Total Fencing Solutions Supplier.
KOCHFENCE is operated by an energetic, experienced and honest fencing expert team.
