High security cattle fence / grassland fence / deer / horse / sheep fence
Application:

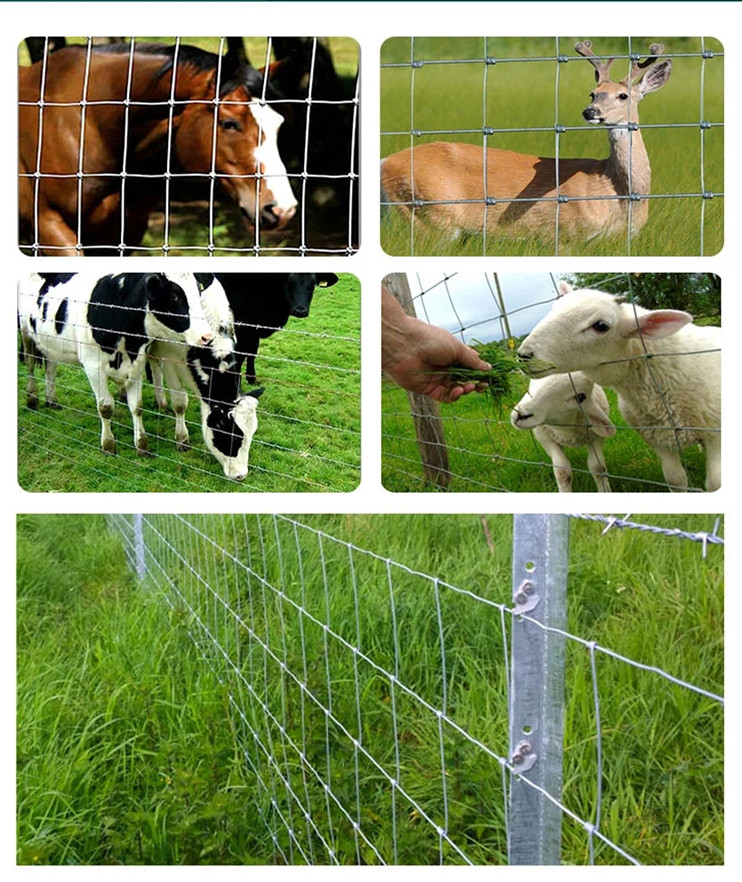

Mainly used in cattle, goat, deer and pig. It is used for grassland, pastures, protection of ecological projects,
protecting grassland, forestry, farming sectors, highway mitigation fencing and environment.
Detailed Description:
1.Material: low carbon steel wire,middle carbon steel wire
2.Surface treatment:
Class A: Hot dipped galvanized hinge joint field fece(zinc coated:220-260g/m2)
Class B: Hot dipped galvanized hinge joint field fence(zinc coated:60-70g/m2)
Class c: Electro galvanized hinge joint field fence(zinc coated:15-20g/m2)
3.Edge wire: 2.0mm-3.4mm
4.Mesh wire dia : 1.9mm-2.5mm
5.Height: 0.8m,1.0m,1.2m,1.5m, 1.7m, 2.0m. We can also make as the request of the customer .
6.Length: 50m-200m ;(According to the request of the customer)
7.Opening in cm:
(warp)15-14-13-11-10-8-6cm; ( 6" 5.5" 5" 4.5" 4" 3" 2.5")
(weft)15-18-20-40-50-60-65cm (6" 7" 8" 15" 20" 24" 25")
8.Characteristics: corrosion resistance, weather resistance properties, high tensile strength, durable against hit and serve for a very long time.
9.Application:it is used for border in fields and grassland for breeding deer, cattle and other animals.

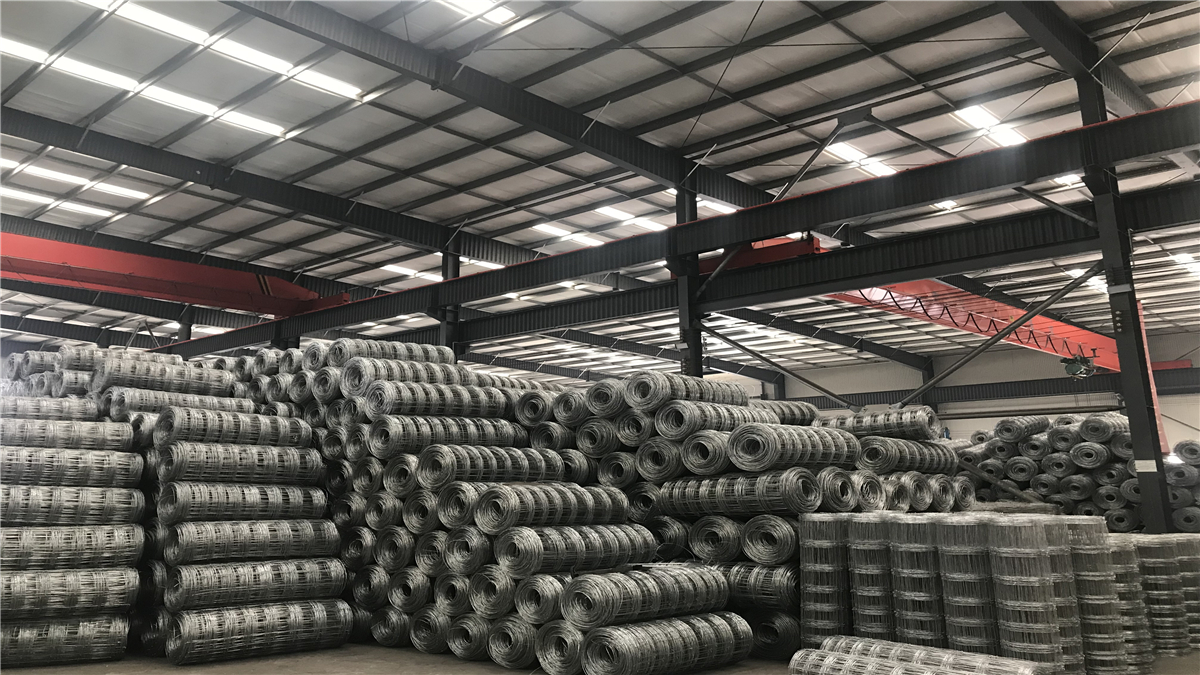

10.Packing: packed by plastic film and wooden pallet

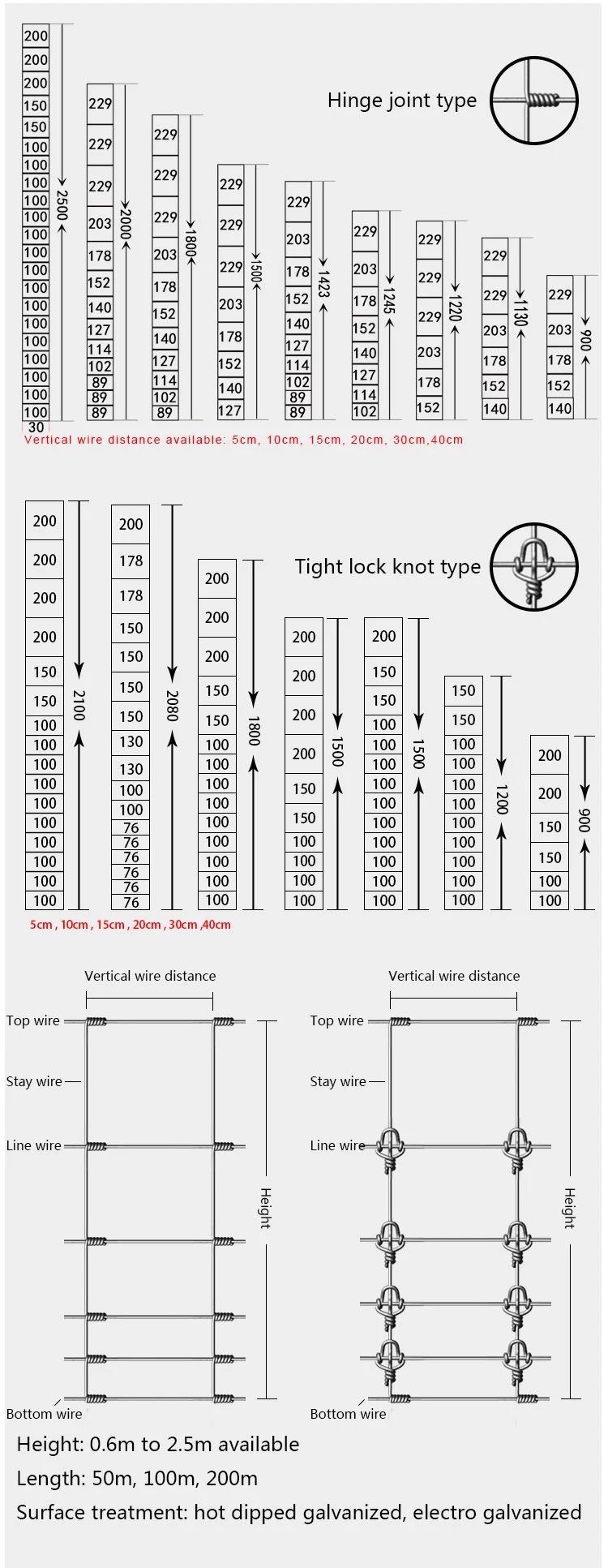

Specification:
| Num | Type | Specification/Edge wire2.5mm/Inner wire 2.0mm | Gross weight(KG) |
| 1 | 7/150/813/50 | 102+114+127+140+152+178 | 19.3 |
| 2 | 8/150/813/50 | 89(75)+89+102+114+127+140+152 | 20.8 |
| 3 | 8/150/902/50 | 89+102+114+127+140+152+178 | 21.6 |
| 4 | 8/150/1016/50 | 102+114+127+140+152+178+203 | 22.6 |
| 5 | 8/150/1143/50 | 114+127+140+152+178+203+229 | 23.6 |
| 6 | 9/150/991/50 | 89(75)+89+102+114+127+140+152+178 | 23.9 |
| 7 | 10/150/1245/50 | 102+114+127+140+152+178+203+229 | 26 |
| 8 | 10/150/1194/50 | 89(75)+89+102+114+127+140+152+178+203 | 27.3 |
| 9 | 10/150/1334/50 | 89+102+114+127+140+152+178+203+229 | 28.4 |
| 10 | 11/150/1442/50 | 89(75)+89+102+114+127+140+152+178+203+229 | 28.4 |
Feature:
1) Coated with heavy zinc or PVC coating for long-lasting use

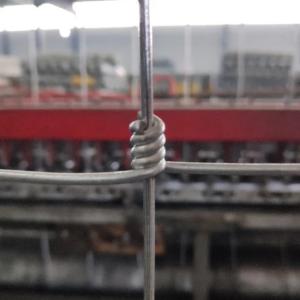

2) Hinge joint knot, stronger and firmer structure.
3) Wire tension curve to keep fence flexibility in changing weather.
